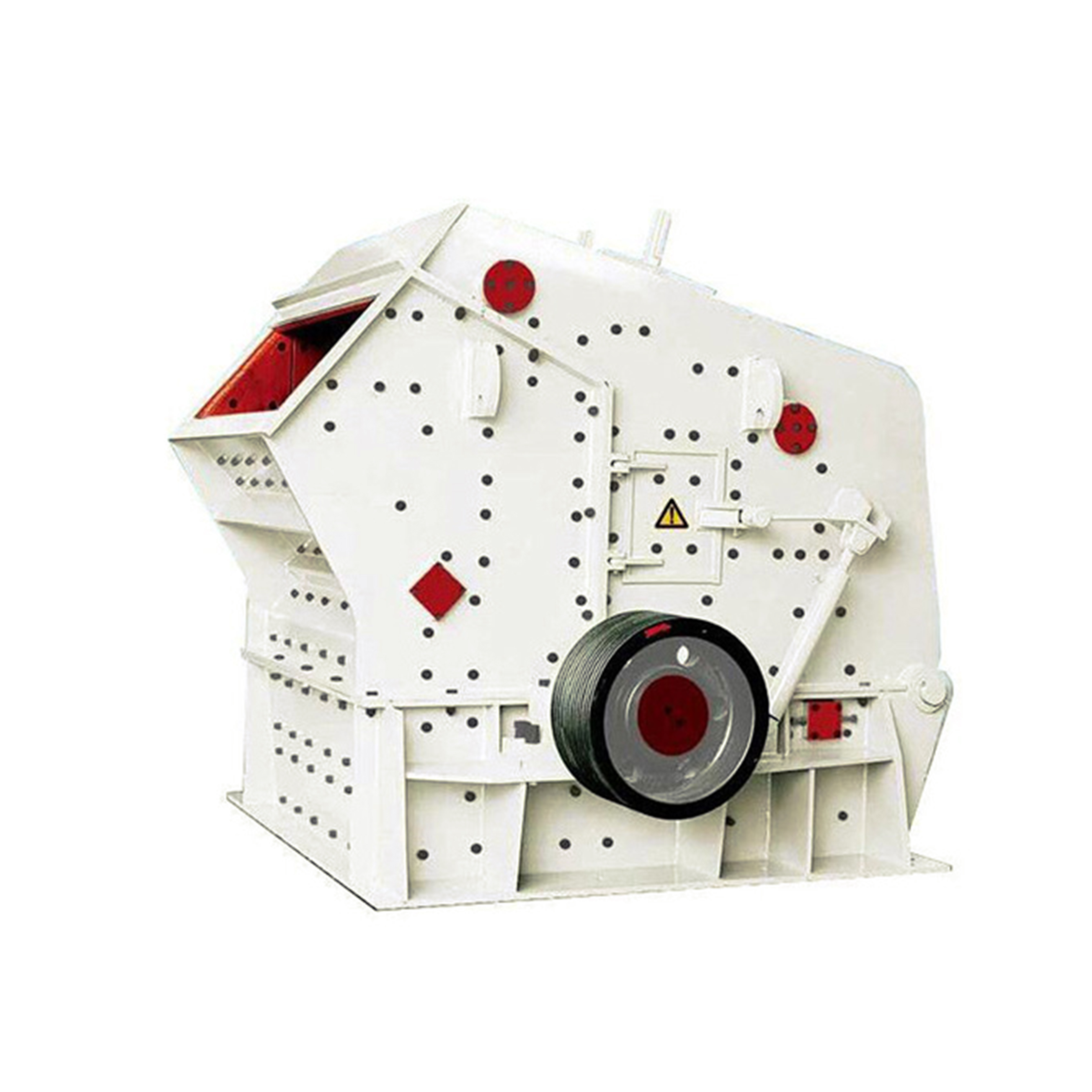

Kinglink PF is widely used for medium hard stone and soft stone crushing. the impact crushers feature a unique combination of heavy rotor design, materials selected for good wear resistance and crusher chamber design. This combination has proven revolutionary in improving capacity and product quality and in reducing operating and wear costs. PF Series impact crushers deliver unbeatable performances in primary, secondary and tertiary applications.
PF Series Impact Crusher with optimized crushing chamber bring a high reduction ratio and a good cubical shape to meet asphalt and concrete product specifications for flakiness and elongation; A heavy-duty rotor lead to bigger capacity of production; Easy blow bars locking device to ensure the reliable working and make the maintenance easier;
Benefits
• Hard rock crushing, energy efficient;
• Blow bar made of high-chromium iron with advantages of good wear resistance;
• Strong structure Steady performance;
• No-board connection Easy to disassembly and maintain;
Specifications
PF SERIES | ||||||
---|---|---|---|---|---|---|
Model | Feed opening (mm) | Maximum feeding (mm) | Capacity (t/h) | Overall Dimension L×W×H (mm) | Power (kw) | Weigth (t) |
PF-1007 | 820×700 | 300 | 24-45 | 2400×1558×2660 | 55 | 9.5 |
PF-1010 | 1170×720 | 350 | 50-80 | 2520×1900×2200 | 75 | 10 |
PF-1210 | 1090×465 | 350 | 80-130 | 2638×2053×2810 | 110 | 14 |
PF-1214 | 1440×465 | 350 | 100-160 | 2580×2400×2810 | 132 | 18 |
PF-1315 | 1532×560 | 350 | 140-200 | 3007×2748×2556 | 200 | 19.3 |
PF-1316 | 1690×859 | 350 | 150-220 | 3096×2850×2667 | 200 | 19.5 |
PF-1320 | 2030×800 | 350 | 280-320 | 3280×3200×2613 | 280 | 29.7 |
PF-1515 | 1580×850 | 350 | 220-280 | 3550×2835×3277 | 315 | 28.3 |
